Product Description

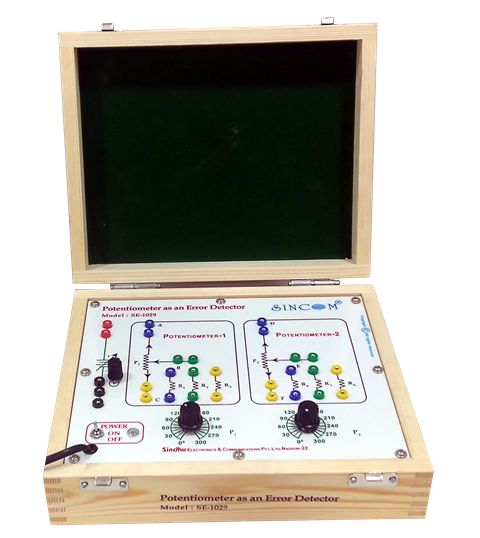

SINCOM SE-1029 Potentiometer as an Error Detector is a versatile trainer designed for studying the potentiometer as an Error Detector. It allows users to analyze the error characteristics and the behaviour of these potentiometers when subjected to variable DC input voltage and multiple resistors. The potentiometer features an on-board 0-300O marked shaft angle dial, providing precise control and measurement for both types of potentiometers.
Product Features
- Two Linear Potentiometers
- 0-300O marked shaft angle dial
- In-Built Variable regulated DC Power Supply
- Resistors Bank
- Facility to connect the External meters.
- Presents a multi-color Circuit Diagram printed on the front panel of the white board
- Enclosed in an attractive, light weight, High Quality, Poly Coated Imported Pine Wooden cabinet
- Interconnections by 2mm high quality banana sockets and pins.
Learning Scope
- To study Potentiometer as an Error Detector.
- To study the loading effect of the potentiometers & to calculate loading error.
- To plot the graph of shaft position Vs unloaded and loaded output voltage.
- To plot the graph of shaft position Vs Error Voltage.
